Wear resistant ceramic lined pipe fitting

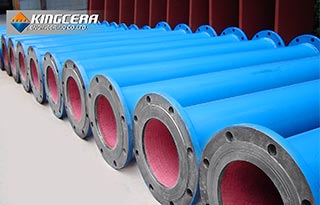

Ceramic tile lined pipe

This kind of ceramic tile lined pipe consist of three parts (steel pipe + adhesive + ceramic tiles), the steel pipe is made of seamless carbon steel pipe. The ceramic tiles are 95% high alumina, and the bonding is high temperature epoxy adhesive up to 350oC.This kind of pipe are suitable for the powder transport without tile falling off or aging working under 350oC for long time. The service life span is 4 to 5 times than normal steel pipe.

Applicable scope:These Pipes used for Pneumatic and Hydraulic Systems are suffering from high wear, high sliding and high impact, especially for the elbows. We can also design the custom pipe fittings to meet different working applications.

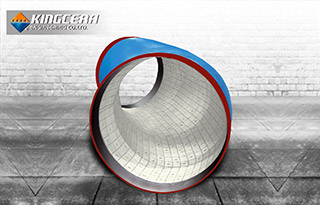

Weldable ceramic tile lined pipe

With self-locking shape ceramic tiles installed into the bend or pipe by inorganic adhesive and as well as stud welding. This solution can prevent the tiles from high abrasion as well as falling off in high temperature under 750℃.

Applicable scope:This kind of pipes is usually used for high temperature and high abration material transport system.

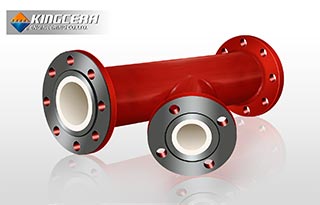

Ceramic sleeve lined Pipe

The ceramic tube or ceramic sleeve sintered as a whole part, and then assemble it into the steel pipe with our high-strength-temperature-resistant epoxy adhesive. The ceramic sleeve lined pipe has a smooth inner wall, excellent tightness as well as good wear and chemical resistance ability.

Advantages：

• 1.Superior wear resistance
• 2.Chemical and impact resistance
• 3.Corrosion resistance
• 4.Smooth inner wall
• 5.Easy installation
• 6.Saved maintenance time and expenditures
• 7.Longer service lifetime
